Last Friday we dropped the 1.8 Protege engine into the Miata. Which since we were ahead of the game the owner stopped by on the weekend to check out the progress. While he was in the shop we thought it would be a cool motivation to test fit the Raceland header he'd picked up for the project. what seem to be an easy fit turned out to be anything but. We have used Raceland products before and even installed a Raceland header on a 1.6 Miata in the summer. That install was easy if uneventful. It was also used in considering the use of a Raceland header on this project.I would like to state anyone that has not read the previous posts, we are installing a 1.8 transverse Protege engine in a 1.6 Miata... things are not always what the seem.
So here will be a few things to consider and some key points to making this painless.

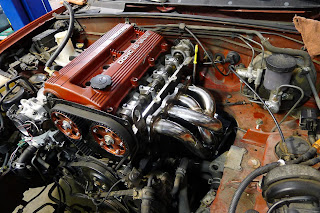

You should remove the valve cover to give extra clearance for the header to drop down in between the chassis and the trans. It is very tight to make it fit. We were considering disconnecting the steering shaft to slide the header in but it was well rusted up. so we loosen up the three transmission bolts to allow the trans to float up and down. Then the nut and washer were removed from the driver's side engine mount. At this point a jack with blocks of wood just big enough to fit on the oil pan was rolled under to jack the engine up enough to spread the distance of the space between the steering shaft, chassis and bell housing.

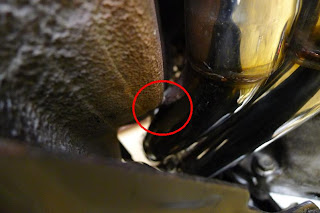

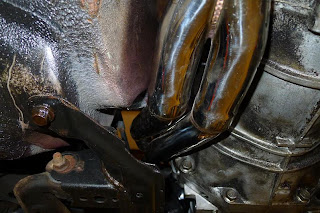

One it was fitted in and the bolts were snugged up, the header was hitting the corner side of the floorpan/firewall. This was going to cause problems of all sorts. So two choices are this; dish the pipe in or dish the floor in. Our header is stainless and it would be doubtful that we'd do enough to make the difference. On an added point, dishing in the floor pan helps with the installation. We used an air hammer with a one inch head. it fits in easy. work it on the sharp edge; a little at a time and go slow. Once the sharp edge is pushed in it becomes easier to push more metal in. Though it might be possible to do this on your back with a regular hammer... the air hammer really is your best friend.
The undercoating will be damaged, make sure you coat it with something. We had a small can of rust bullet kicking around perfect, and then a quick spray with some black spray paint finished it off.
At this point it is a good idea to do your trans fluid if its a manual. the fill will be right behind the header in the future so now would be a really good time with no header in the way. After that is done make sure to tighten up the driver's side engine mount; support the transmission and tighten up the trans support and replace the valve cover gasket. Give a once over to your bolts and your mostly done.
One other note is that the O2 sensor is father down the header than a stock header. What we will do with this as we've done with the other Raceland header was extend the harness side of the O2 sensor. Take the time, solder a section of wire into it to give extra length leaving the factory O2 connector in place. Use shrink wrap tubing to seal it up; you don't want corrosion getting in there and changing the resistance.
4 comments:
Hey how were you able to wire up the throttle body? email me at jessiecha08@gmail.com thanks
The 1.6 throttle only needed a switch for idle and for WOT (wide open throttle) which only run three wires to the throttle. However because I couldn't use the 1.6 throttle on the 1.8 manifold, I would have to use a 1.8 throttle. The 1.8 doesn't use the same system as the 1.6. Rather it still has a idle switch but then uses a TPS (throttle position sensor) or in a simpler term, a potentiometer. Since the car is going to run Megasquirt at a later time this TPS setup will be useful. However, we are currently running the stock wiring harness until that time. So I'm using the the idle switch off the the 1.8 and on the connector. I will then use the two bolts on the top of the throttle and make a bracket to hold a small blade switch which will close when the throttle pulley makes full contact during WOT. For this switch you can use just about any type of blade switch, I'll probably use one from a VW throttle or Volvo transmission interlock switch. The bracket will be a simple section of aluminum angle stock that is easy enough to cut and look decent with a little thought.
Do you think I would need to bend the floor pan on a 1.8 swap from a 94 miata to my 93 miata as well . I am thinking about purchasing the raceland header as well and if it does not fit I dont need to buy it.
I'm not sure, but the chassis seems to be the same- and if they (Raceland) haven't modified the angles of the header, then I wouldn't be surprised if the floor pan needs some modding. We also had to change the motor mounts on this engine, so I don't recall how much a factor the stock engine mounts play into it. It might not be a bad idea to shoot a e-mail off to a Raceland dealer.
